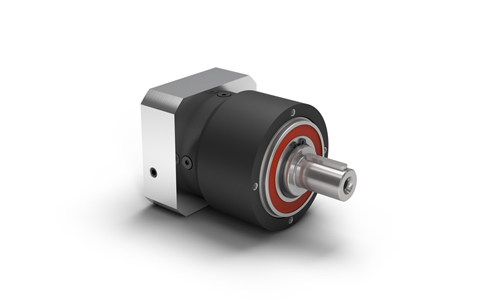

Planetary Gearbox with Output Shaft PLPE

The cost effective planetary gearbox with the best torque-low heat performance.

Our PLPE unites the best properties of the Economy Line with a performance advantage. It is cost effective, yet powerful, and generates minimal heat. The optimized output bearing has been designed for high radial and axial forces.

Message Download

DetailsParameter

PLPE planetary gearbox is a gearbox that integrates the relevant characteristics of economical products. The performance of PLPE gearbox has also been greatly improved in terms of economical advantages. While this gearbox is economical and practical, the heat generated is high. It is very rare, and the optimized output bearing of this gearbox can withstand high radial and axial forces, and can complete work tasks safely and stably in some difficult jobs.


Product description

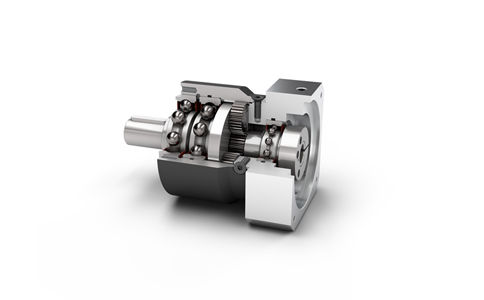

Optimized output bearing of PLPE gearbox. This larger deep groove ball bearing allows PLPE to have high radial and axial forces. No additional bearing assemblies are required, the drive element of this gearbox can be directly mounted on the output shaft, and the structure is simple and very flexible.

Low heat generation at maximum speed. The low friction loss bearing design and lubricated function of this gearbox make PLPE economical and durable. And because of the low heat generation advantage of this gearbox, it can exert its own characteristics even in a high-standard production environment.


This gearbox adopts shaft output and can choose different shaft specifications; two stages of gear planet carrier are available; a total of 17 speed ratio options from 3-100; PLPE structure sizes are 50, 70, 90, 120, 155 Five different specifications; rated torque 5-460Nm, radial force can withstand 800-5200N, axial force can withstand 1000-7000N, return clearance 6-19arcmin (can be customized according to demand). The torsional stiffness of PLPE is 0.7-73Nm, and the weight range is between 0.6-22.5kg. The specific output depends on the product model.

PLPE gearboxs are used in industries such as food, printing and cutting machines or where high radial and axial forces are required.


Product advantages

Strong performance, high radial and axial forces, economical, low heat generation

Optional

Various types of output shafts

lubricating

Optimized tensioning system

Various types of drive flanges

Use

Food industry, pharmaceutical technology and pharmaceutical industry, printing industry

Features

Cost-effective

Low heat at high speed

Optimized output bearing

Can be installed anywhere

Lifetime lubrication maintenance free

Precise engagement

PLPE planetary gearbox speed ratio model

PLPE50-3、PLPE50-4、PLPE50-5、PLPE50-7、PLPE50-8、PLPE50-10、PLPE50-9、PLPE50-12、PLPE50-15、PLPE50-16、PLPE50-20、PLPE50-25、PLPE50-32、PLPE50-40、PLPE50-64、PLPE50-100
PLPE70-3、PLPE70-4、PLPE70-5、PLPE70-7、PLPE70-8、PLPE70-10、PLPE70-9、PLPE70-12、PLPE70-15、PLPE70-16、PLPE70-20、PLPE70-25、PLPE70-32、PLPE70-40、PLPE70-64、PLPE70-100
PLPE90-3、PLPE90-4、PLPE90-5、PLPE90-7、PLPE90-8、PLPE90-10、PLPE90-9、PLPE90-12、PLPE90-15、PLPE90-16、PLPE90-20、PLPE90-25、PLPE90-32、PLPE90-40、PLPE90-64、PLPE90-100
PLPE120-3、PLPE120-4、PLPE120-5、PLPE120-7、PLPE120-8、PLPE120-10、PLPE120-9、PLPE120-12、PLPE120-15、PLPE120-16、PLPE120-20、PLPE120-25、PLPE120-32、PLPE120-40、PLPE120-64、PLPE120-100
PLPE155-4、PLPE155-5、PLPE155-10、PLPE155-16、PLPE155-20、PLPE155-25、PLPE155-40、PLPE155-50、PLPE155-100

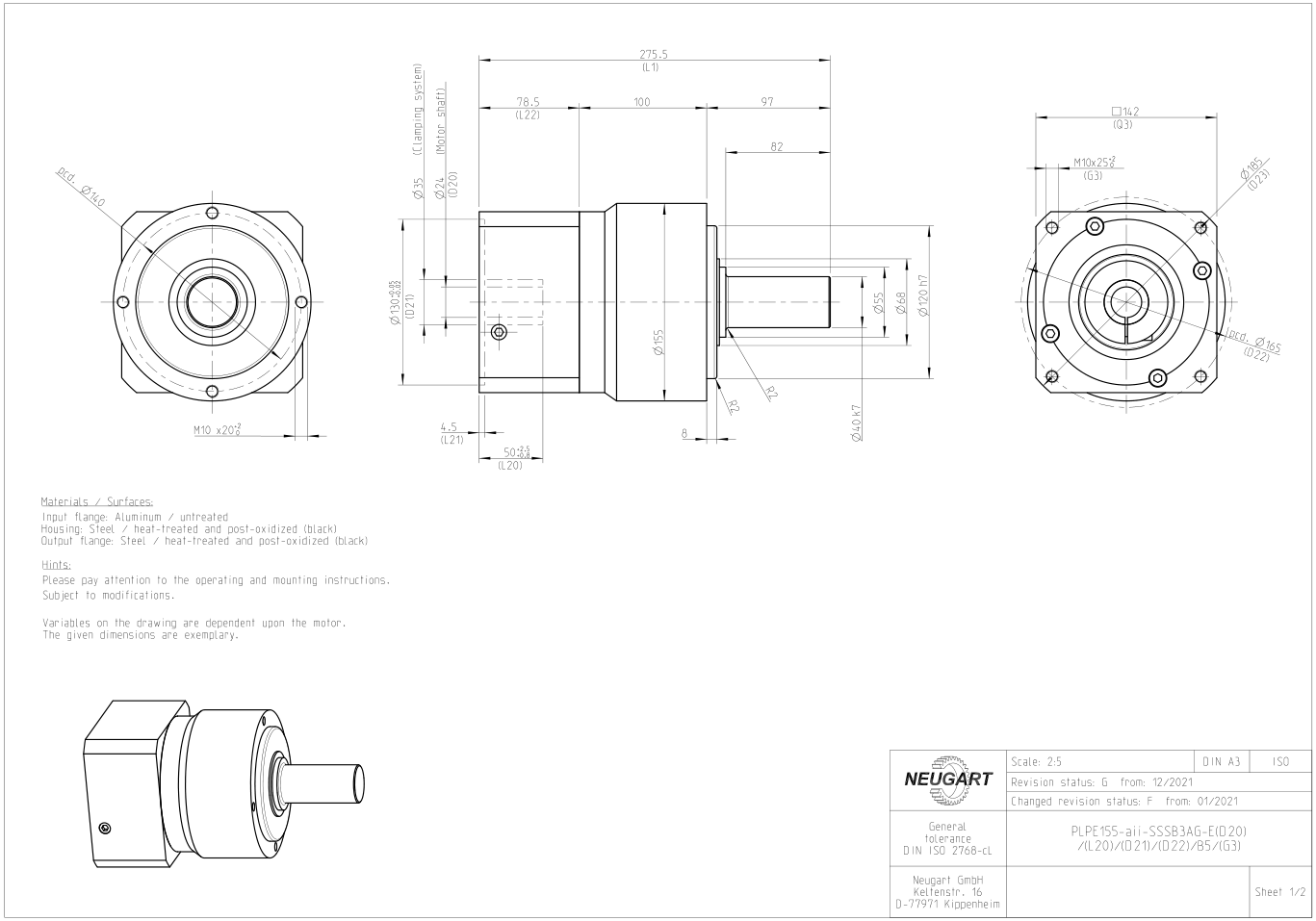

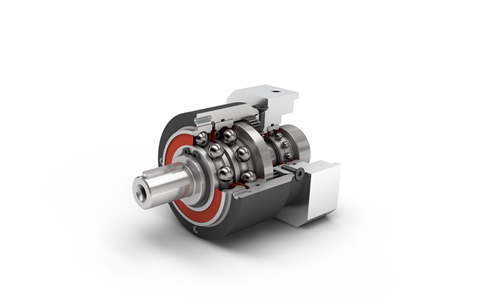

PLPE internal structure dimension drawing: PLPE內部結構圖.png

Gearbox characteristics		PLPE050	PLPE070	PLPE090	PLPE120	PLPE155	P
Reduer		3, 4, 5, 7, 8, 10					1
Reduer		9, 12, 15, 16, 20, 25, 32, 40, 50,64,100					2
Service life	h	30.000
Efficiency at full load	%	98
Efficiency at full load	%	97
℃	-25/90
Protection class		IP54
Standard lubrication		Grease (lifetime lubrication)
Food grade lubrication		Grease (lifetime lubrication)
Low temperature lubrication		Grease (lifetime lubrication)
Lnstallation location		Any
Standard return clearance	arcmin	<15-<19	<10-<12	<7-<9	<7-<9	<6-<9
Torsional stiffness	Nm/arcmin	0.7-1.1	3.5-5.8	9.7-16.1	24.5-43.5	54.5-73.0
Reducer weight	kg	0.6-1.1	1.4-1.9	3.2-4.0	7.4-9.6	16.8-22.5
Standard case surface		Housing: Steel - heat-treated and post-oxidized(black)
Running noise	dB/(A)	58	58	60	65	70
Max bending moment based on the gearbox input flange	Nm	3	8	16	40	180

Nominal output torque

PLPE050	PLPE070	PLPE090	PLPE120	PLPE155	I	P
11	28	85	115	-	3	1
15	33	90	155	460	4
13	30	82	172	445	5
8.5	25	65	135	-	7
6	18	50	120	-	8
5	15	38	95	210	10
12	33	97	157	-	9	2
15	33	90	195	-	12
13	33	82	172	-	15
15	33	90	195	460	16
15	33	90	195	460	20
13	30	82	172	445	25
15	33	90	195	-	32
13	30	82	172	460	40
-	-	-	-	445	50
7.5	18	50	120	-	64
5	15	38	95	210	100

Output shaft loads

		PLPE050	PLPE070	PLPE090	PLPE120	PLPE155
Radial force for 20000 h	N	800	1050	1900	2500	5200
Axial force for 20000 h	N	1000	1350	2000	4000	7000
Radial force for 30000 h	N	700	900	1700	2150	4600
Axial force for 30000 h	N	800	1000	1500	3000	6000
Tilting moment for 20000 h	Nm	26	42	99	168	497
Tilting moment for 30000 h	Nm	22	36	89	144	440

Geometry

		PLPE050	PLPE070	PLPE090	PLPE120	PLPE155	P
Shaft diameter output	mm	12	16	22	32	40
Centering diameter output	mm	35	52	68	90	120
Housing diameter	mm	50	70	90	120	155
Min. total lenght	mm	94	111	147	192	275.5	1
	mm	106.5	124	165	219.5	320	2
Shaft lenght output	mm	24.5	36	46	68	97
